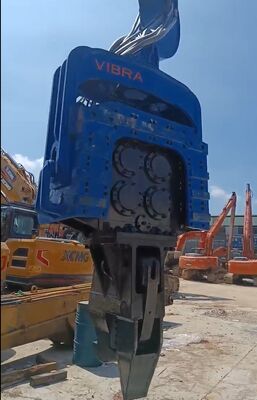

The FV600 is a flagship model from our Four eccentric pile driver Factory, designed for 50–65 ton excavators to drive long steel sheet piles, steel casings, and PC hybrid piles up to 21 meters deep. As a Hydraulic pile driver Factory specializing in large‑scale piling solutions, the FV600 combines four eccentric shafts to generate smooth, powerful vibration with exceptional balance. Its low maintenance cost design – developed in our Factory – and low noise eco friendly operation make it ideal for urban and environmental‑sensitive projects across Southeast Asia, India, and Russia. The advanced integrated control valve assembly from reliable Manufacturers ensures precise hydraulic management and extended component life.

As a product from a leading Four eccentric pile driver Factory, the FV600 uses four counter‑rotating eccentric shafts instead of two. This design doubles the vibration frequency per revolution while cancelling harmful lateral oscillations. The result is a pure vertical vibratory force of 818 kN (centrifugal force) at a frequency of 2700 rpm. Compared to twin‑eccentric hammers, the four‑eccentric system delivers:

• Higher energy density per kg of hammer weight.
• Smoother penetration in dense layers like stiff clay or gravel.
• Reduced stress on the excavator boom and slew ring.

This Four eccentric pile driver Factory advantage means faster driving cycles and the ability to handle 18–21 meter piles without pre‑augering.

The FV600 incorporates a low maintenance cost design from our Factory, featuring:

• Self‑lubricating bearing system inside the eccentric box – bearings are continuously oil‑mist lubricated, extending service life by over 300% compared to manual grease lubrication.
• Oversized connecting shafts and super‑strong structural components – no weak points, even under continuous heavy vibration.
• Hardened cast steel clamp jaws – matched with 160–180 mm bore cylinders, delivering a clamping force of 650 kN. Jaws are replaceable without dismantling the whole hammer.
• Modular cartridge valves – all hydraulic cartridges are plug‑in type, reducing downtime for servicing.

This low maintenance cost design from our Factory has proven to reduce annual maintenance expenses by 40–50% for contractors in India’s high‑heat, high‑dust environments and Russia’s extreme cold zones.

Noise pollution is a growing concern in urban infrastructure. The FV600 is engineered with low noise eco friendly operation as a core principle. Our low noise eco friendly operation Factory uses:

• Sound‑damped eccentric housing with double‑wall construction.
• Precision‑balanced four‑eccentric geometry that eliminates gear rattling and asymmetric vibrations.
• Hydraulic cushioning at the clamp cylinders to reduce impact noise when gripping piles.

At 2700 rpm, the FV600 produces only 84 dBA at 7 meters – significantly quieter than impact hammers and comparable to modern hydraulic breakers. This low noise eco friendly operation allows night shifts in residential areas, near hospitals, or inside factory complexes without violating local environmental codes. Projects in Bangkok, Mumbai, and Moscow have used FV600 for overnight utility shoring with zero complaints.

The FV600 features an integrated control valve assembly supplied by top Manufacturers. This compact manifold combines:

• A large‑flow merging valve (up to 700 L/min system capacity – the FV600 uses 350 L/min, but the valve handles peaks).
• Pilot‑operated relief and anti‑cavitation valves.
• Proportional flow control for smooth ramp‑up of vibration frequency.

The integrated control valve assembly eliminates dozens of external hoses and fittings, reducing leak points by 70%. It also enables a new electronic control system that monitors temperature, pressure, and vibration frequency, automatically adjusting flow to protect components. As integrated control valve assembly Manufacturers, we provide pre‑calibrated assemblies that plug directly into your excavator’s auxiliary circuit – no complex field tuning required.

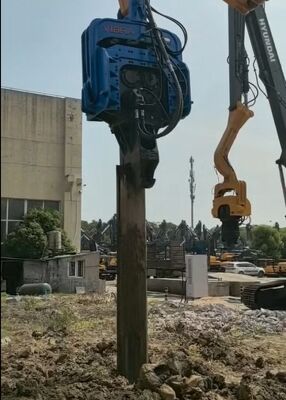

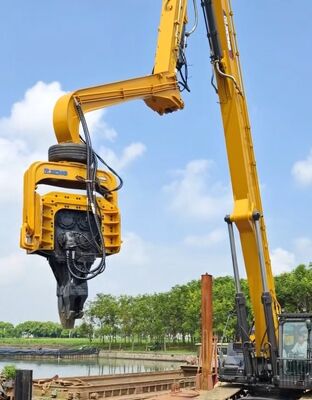

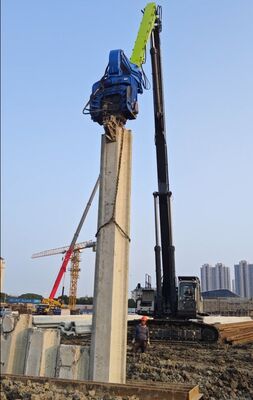

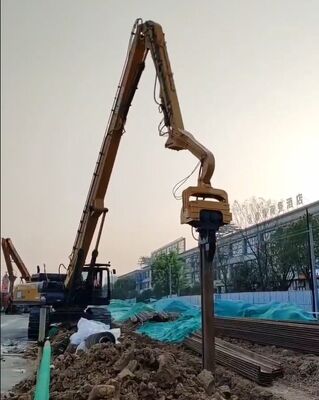

As a Hydraulic pile driver Factory, we designed the FV600 specifically for 50–65 ton carriers. The system operates at 32 MPa with a flow demand of 350 L/min. The hammer weight (3750 kg) plus arm weight (900 kg) stays within the lifting capacity of most 50–65 ton excavators. The FV600 can drive 21‑meter steel sheet piles in one continuous push in medium‑density soils, and extract piles with its 818 kN centrifugal force combined with a powerful lifting cylinder. No auxiliary power pack, no separate power unit – just pure excavator‑integrated piling power.

A: The low maintenance cost design from our Four eccentric pile driver Factory uses a self‑lubricating bearing system and balanced loading on four shafts. Bearings last 3–4 times longer, and the modular construction allows quick replacement of individual eccentrics without splitting the entire box.

A: Yes. Our low noise eco friendly operation Factory guarantees sound pressure below 85 dBA. Many contractors use FV600 for metro extension projects in Saint Petersburg and Moscow where night permits require strict noise limits.

A: The integrated control valve assembly from our Manufacturers reduces external hoses, leaks, and pressure drops. It also includes a soft‑start function that gradually increases vibration frequency, protecting both the hammer and the excavator from hydraulic shock.

A: Absolutely. With 650 kN clamping force and a wide jaw opening, the FV600 grips steel casings up to 22 mm wall thickness. The Hydraulic pile driver Factory offers optional casing jaws with rubber liners to prevent slippage.

A: As a direct Four eccentric pile driver Factory and Hydraulic pile driver Factory, we stock seal kits, bearing sets, and wear plates in our Mumbai, Jakarta, and Novosibirsk warehouses. Delivery typically within 5–7 days. Our engineers provide remote video support and on‑site training upon request.

A: The FV600 requires 350 L/min at 32 MPa. Most 60‑ton excavators have dual pumps delivering 180–200 L/min each. The integrated control valve assembly includes a flow‑merging valve that combines both pump flows automatically when piling starts – no operator intervention needed.
